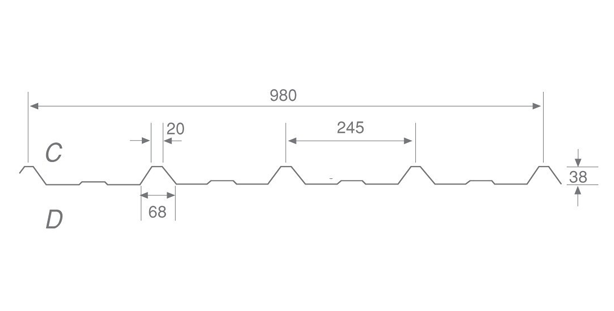

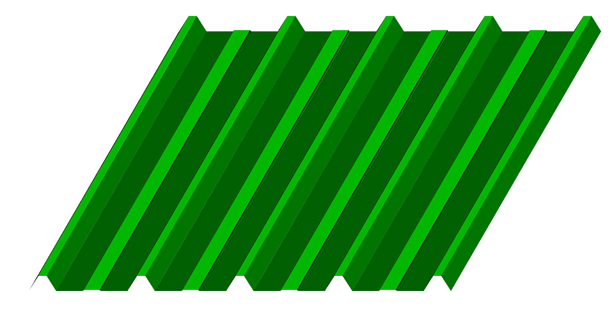

38/980 Trapezoidal Sheet
| Type | : | Roof and Facade |
| Net Covering Width | : | 980 mm |
| Rib Height | : | 0.50 - 1.20 mm |
| Maximum Length | : | 16 m |

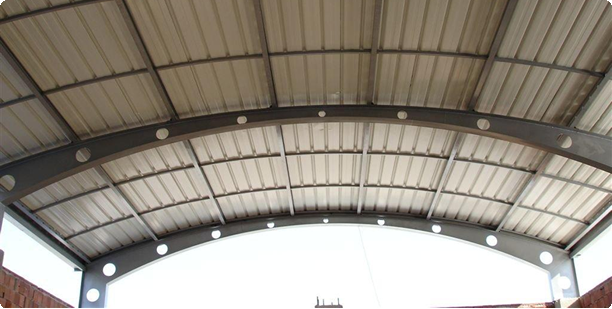

38/980 trapezoidal sheets can achieve efficient results at the roof cladding with optimum price. Strength and aesthetics is combined by the tracks between the ribs.
| Thickness | Span (meters) | |||||
| (mm) | 1.00 | 1.5 | 1.75 | 2.00 | 2.50 | |
| 0.50 | 577 | 256 | 188 | 144 | * | |
| 0.60 | 690 | 307 | 225 | 173 | 110 | |
| 0.70 | 803 | 357 | 262 | 201 | 128 | |
| 0.80 | 915 | 407 | 299 | 229 | 146 | |
| 0.90 | 1026 | 456 | 335 | 257 | 164 | |
| 1.00 | 1137 | 505 | 371 | 284 | 182 | |
| 1.20 | 1357 | 603 | 443 | 339 | 217 | |
table above is prepared according to allowable stress design method |
||||||
yield strength of steel is taken as 220 N / nm2 |
||||||
table showa uniformly distrubuted load, kg/m2 |
||||||
moment distribution due to yielding is considered |
||||||
multi-span moment: Pd*L2/11 |
||||||
deflection limit: L/200 |
||||||
