Aldeck 70/915

Aldeck 70/915, the original and still the most popular deck in the market is a 70 mm high, structurally efficient trapezoidal profile providing an excellent composite union between steel and concrete to maximize the carrying capacity and spanning up to 4.5 m (no props). The efficient shape of the deck and resulting composite slab make an excellent option for composite team design.

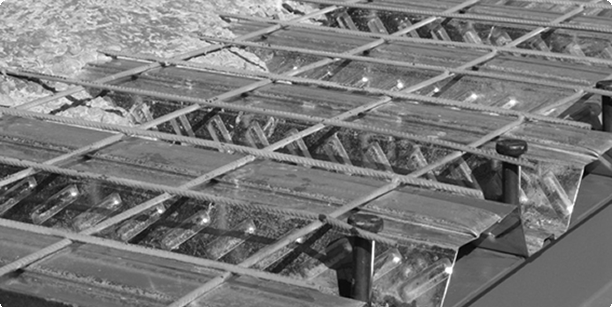

Embossments

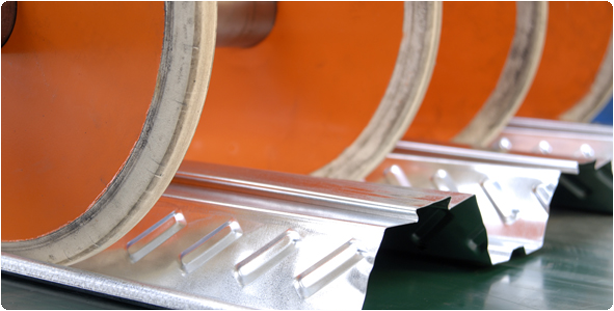

Raised diagonal embossments in opposite directions on each face of the webs of the decking provide improved mechanical connection between the steel and the hardened concrete.

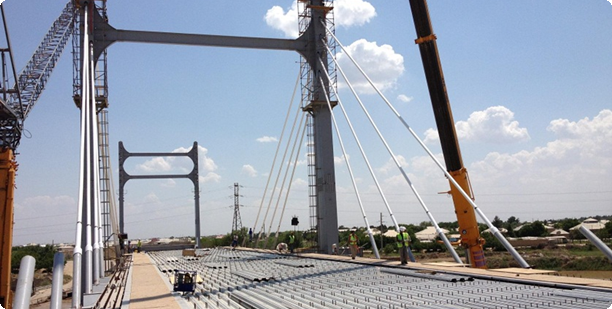

Quicker Installation

Aldeck 70/915 has a net 915 mm covering width requiring fewer panels and sidelaps. No temporary supports are required under most conditions. A wide range of accessories allow easy installation of ceilings and services.

Concrete Volume Savings

Due to its unique profile Aldeck 70/915 requires less concrete than other decks to achieve any given slab thickness. Aldeck 70/915 can save from 15% up to 30% concrete volume when compared with alternative trapezoidal profiles. See graph below.

Technical Support

The technical department of Almetsan has been determining technical and hardware support in order to redirect the correct design and mounting of Aldeck 70/915.

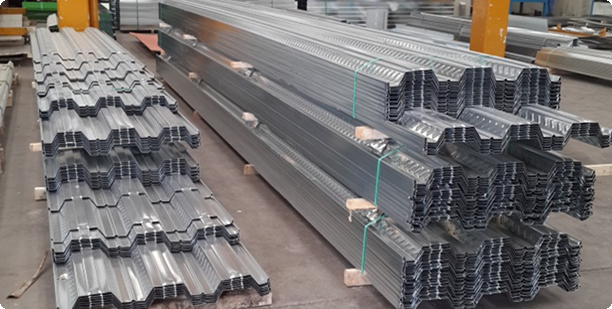

Material Specification

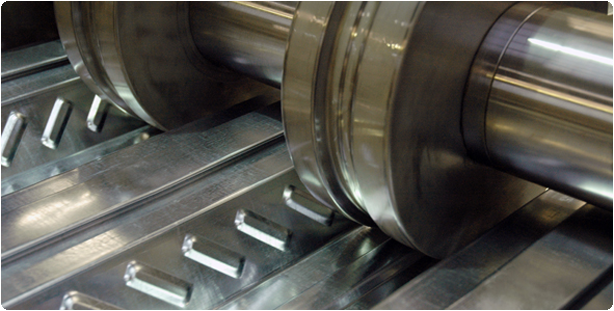

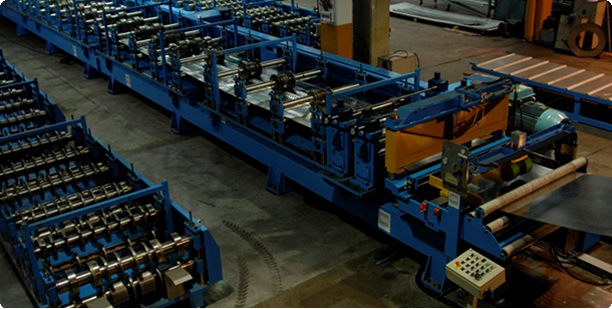

Aldeck 70/915 is being produced according to EN 10143 by using roll-form technology. Thus maximum length is 16 m. Steel strip for Aldeck 70/915 complies with EN 10147 with a guarenteed minimum yield strength of 250N/mm2 up to 350N/mm2 and is zinc coated. Aldeck has a gauge range from 0,70 mm to 1,30 mm for economic solutions.

Advantages

  • Permanent shuttering.
  • Can be used with lightweight or dense concrete.
  • Up to four hours fire resistance.
  • Composit construction reduces steelwork frame weight.
  • Non-propped span up to 4.5 meters can be applicable.
  • Stiffens supporting frame if steelwork used.
  • Provides a safe working platform.
  • Easily cut and fitted to awkward shapes.
  • Minimal site storage requirements.
  • Provides the Tensile reinforcement.
  • Needs no (or minimal) propping.
  • Speeeds construction programme.

ALDECK 70/915

Gauge Thickness (mm)
0,70
0,80
0,90
1,00
1,10
1,20
1,30
Unit Weight (kg/m2)
7,516
8,590
9,663
10,737
11,811
12,885
13,959
Second Moment of Area; Jx (cm4)
66,9742
76,447
85,9153
95,3862
104,858
114,329
123,7979
Efektif Atat. M jx(cm4)
61,6539
71,4538
81,3431
91,322
101,37
111,465
121,5877
Elastic Section Modulus; Wx (cm3)
17,1174
20,0136
22,9624
25,9635
29,0071
32,0817
35,1784

ALDECK 70/915 LOAD TABLE

SPAN SLAP DEPTH (mm) CONCRETE VOLUME
(m³/m²)		 Load Table Kg/m2
ALDECK 0,90 mm ALDECK 1,00 mm ALDECK 1,20 MM
Span(m) Span(m) Span(m)
1,50 2,00 2,50 2,00 2,50 3,00 2,00 3,00 3,50
SINGLE SPAN 120 0,084 1758 901 504 1045 596 352 1338 483 301
130 0,094 1734 877 480 1021 572 328 1314 459 277
140 0,104 1710 853 456 997 548 304 1290 435 253
150 0,114 1686 829 432 973 524 280 1266 411 229
175 0,139 1626 769 372 913 464 220 1206 351 169
200 0,164 1566 709 312 853 404 160 1146 291 109
MULTIPLE SPANS 120 0,084 2493 1314 768 1512 895 560 1916 739 490
130 0,094 2469 1290 744 1488 871 536 1892 715 466
140 0,104 2445 1266 720 1464 847 512 1868 691 442
150 0,114 2421 1242 696 1440 823 488 1844 667 418
175 0,139 2361 1182 636 1380 763 428 1784 607 358
200 0,164 2301 1122 576 1320 703 368 1724 547 298
SINGLE SPAN PROPPED 120 0,084 2003 1038 592 1200 696 422 1531 568 364
130 0,094 1979 1014 568 1176 672 398 1507 544 340
140 0,104 1955 990 544 1152 648 374 1483 520 316
150 0,114 1931 966 520 1128 624 350 1459 496 292
175 0,139 1871 906 460 1068 564 290 1399 436 232
200 0,164 1811 846 400 1008 504 230 1339 376 172
